NexaFlow
Automation platform: a webhook starts a workflow that reshapes the data and notifies Discord, Telegram or any URL.
A visual builder, templated steps and a readable log of every run, plus the product's marketing site.
- Type
- Personal open-source project
- Automated tests
- 30 (pytest)
- Built with
- Python · FastAPI · SQLAlchemy
- Live demo
- Runs locally — not hosted
Overview
What it does
NexaFlow is a full-stack automation platform: a marketing site, a developer dashboard and a Python backend that genuinely runs workflows. A workflow is one trigger, an optional JSON transform and one action. Three integrations exist and work; the rest of the effort went into credential handling, retries, an SSRF guard, ownership boundaries and an execution log.
Problem
Glue between services — “when the shop sends an order, post it to Discord” — tends to be a script nobody can inspect. When it fails, there's no record of the payload, the attempt or the answer.
Solution
An incoming webhook creates an execution row immediately and returns 202; the engine runs in the background, applies the transform, calls the destination with up to three attempts, and stores the trigger payload, transformed payload, attempts, duration and result.
Screenshots
From the running application

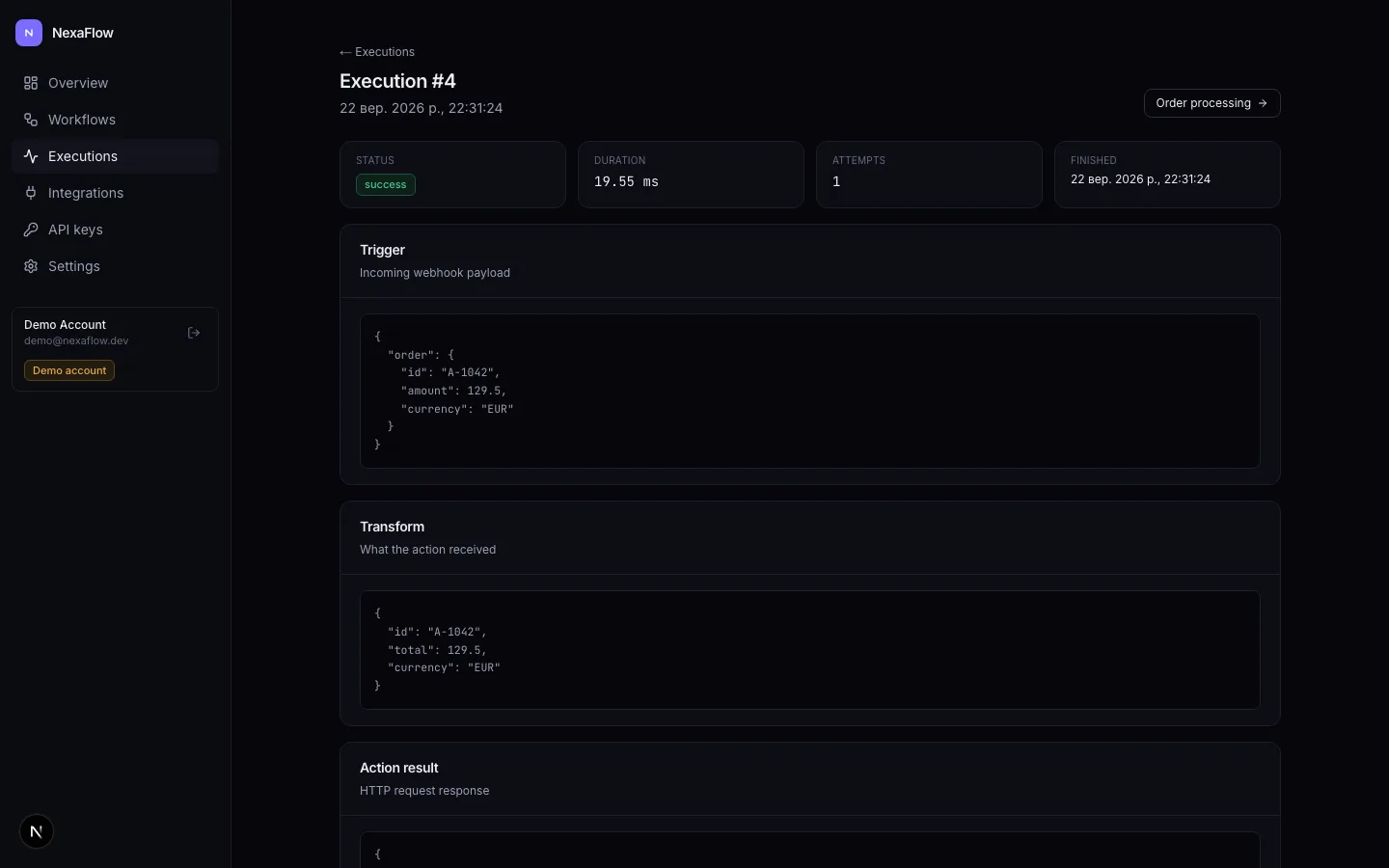

Execution detail with trigger payload, transformed payload and action result

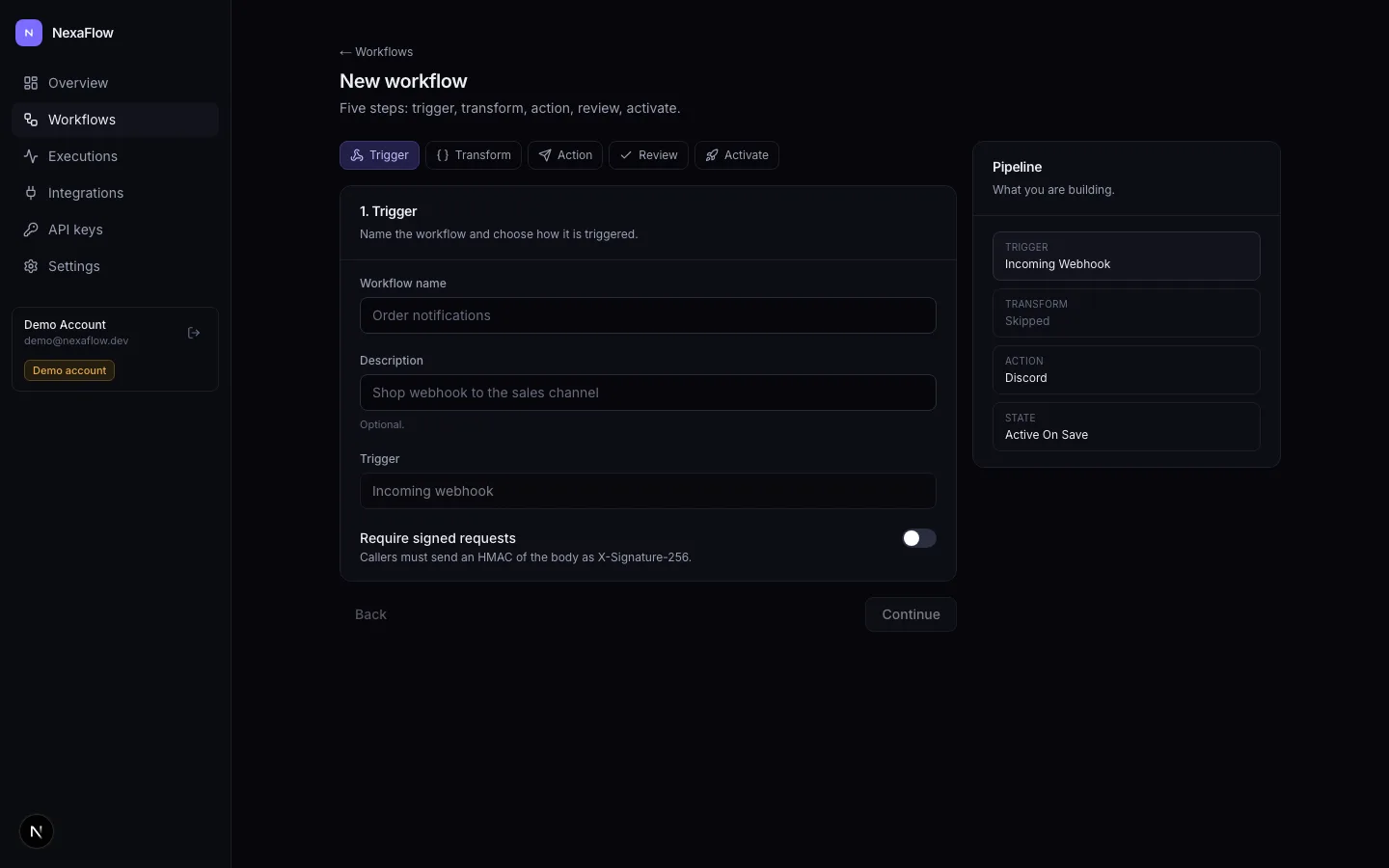

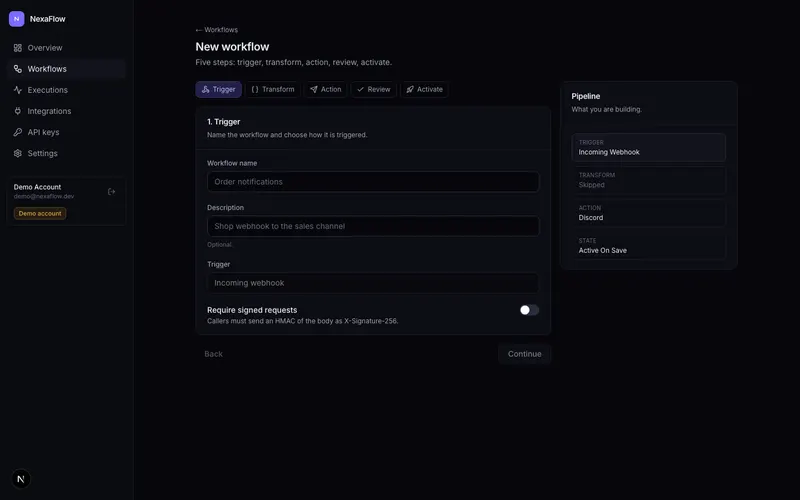

Five-step workflow builder with a live pipeline summary

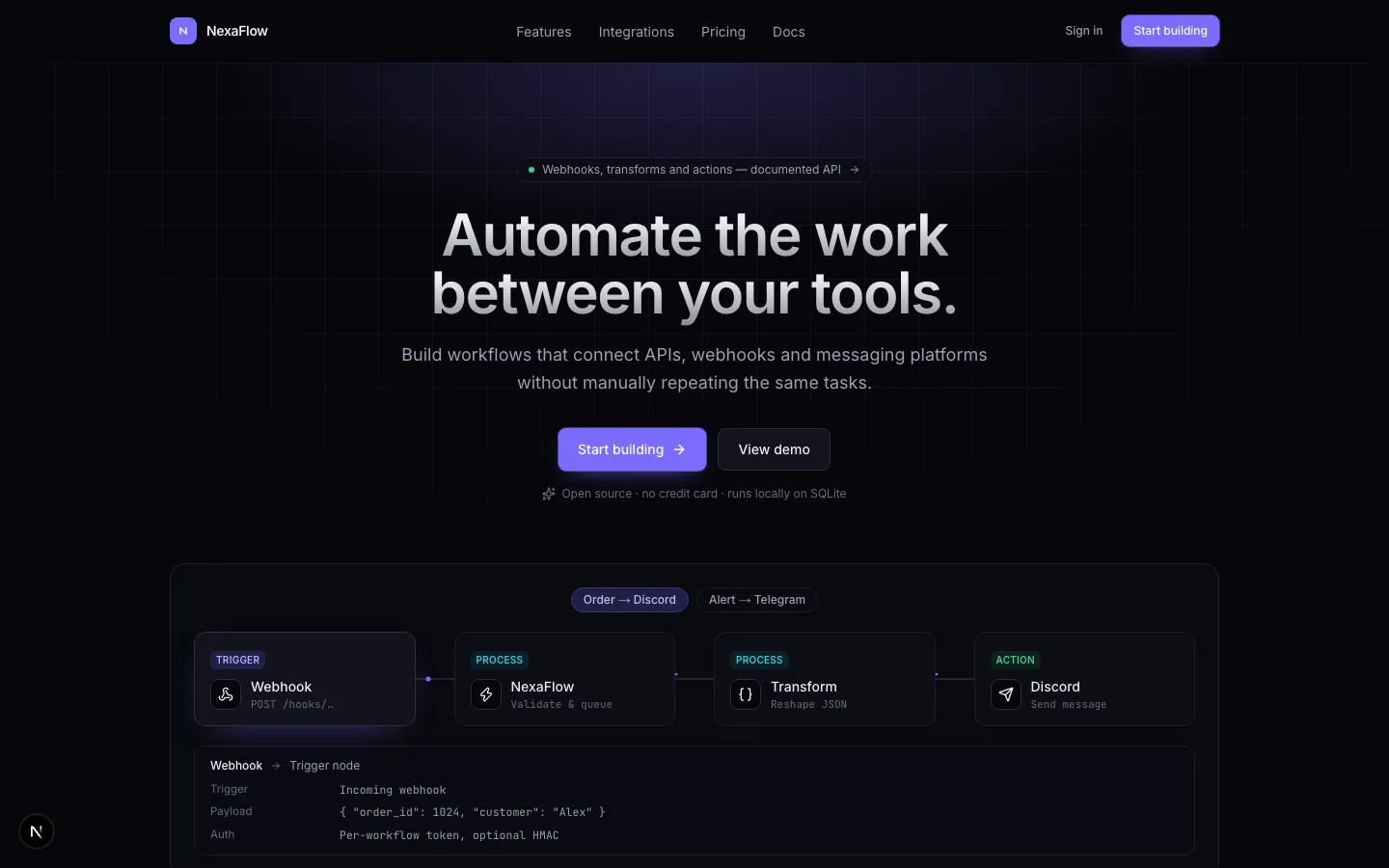

Marketing site hero with an interactive pipeline diagram

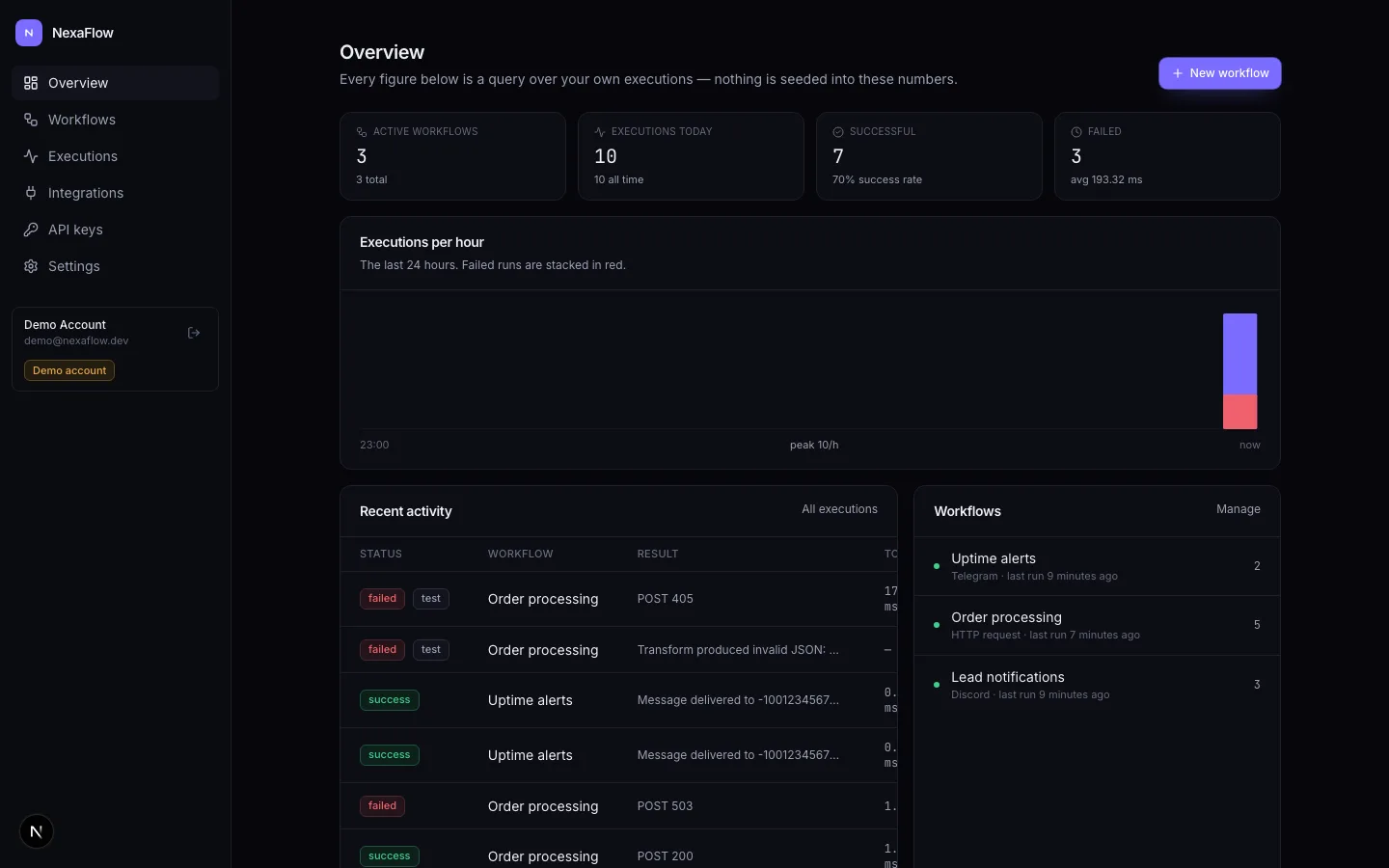

Developer dashboard with executions and success rate

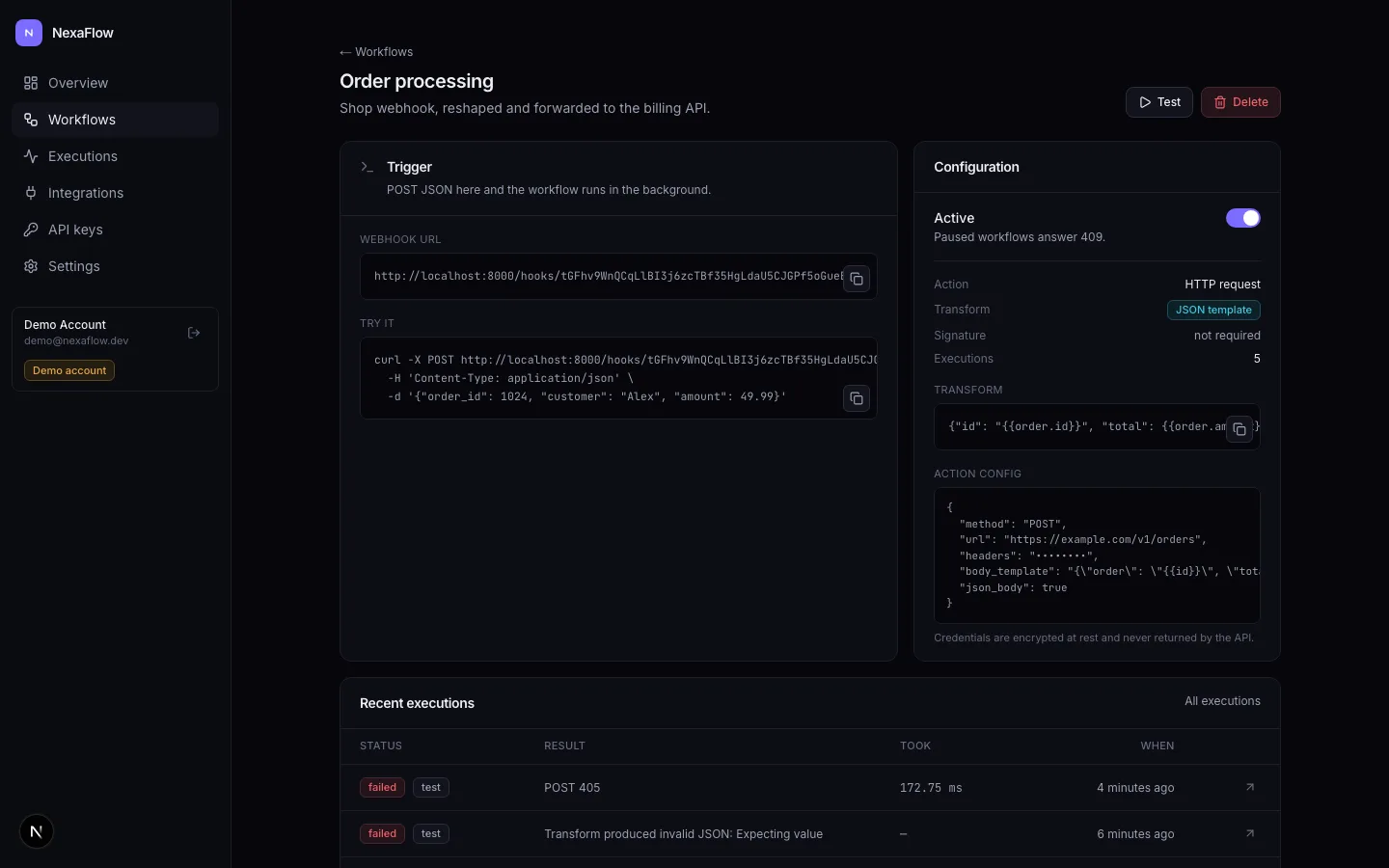

Workflow detail with its webhook URL and recent runs

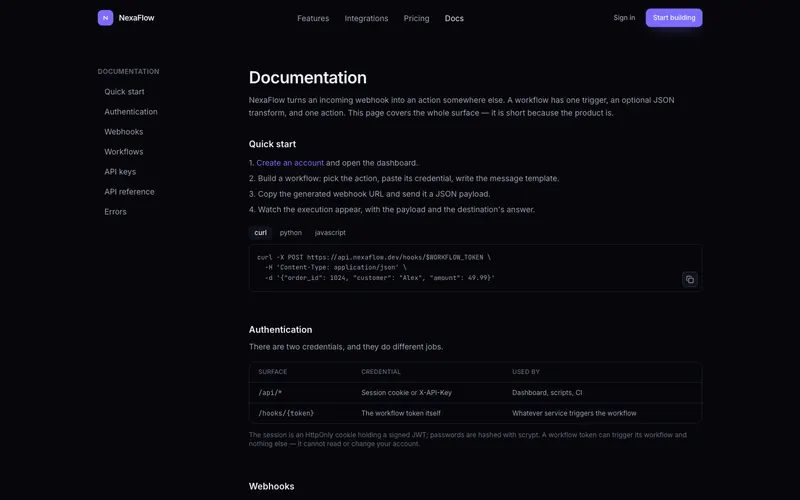

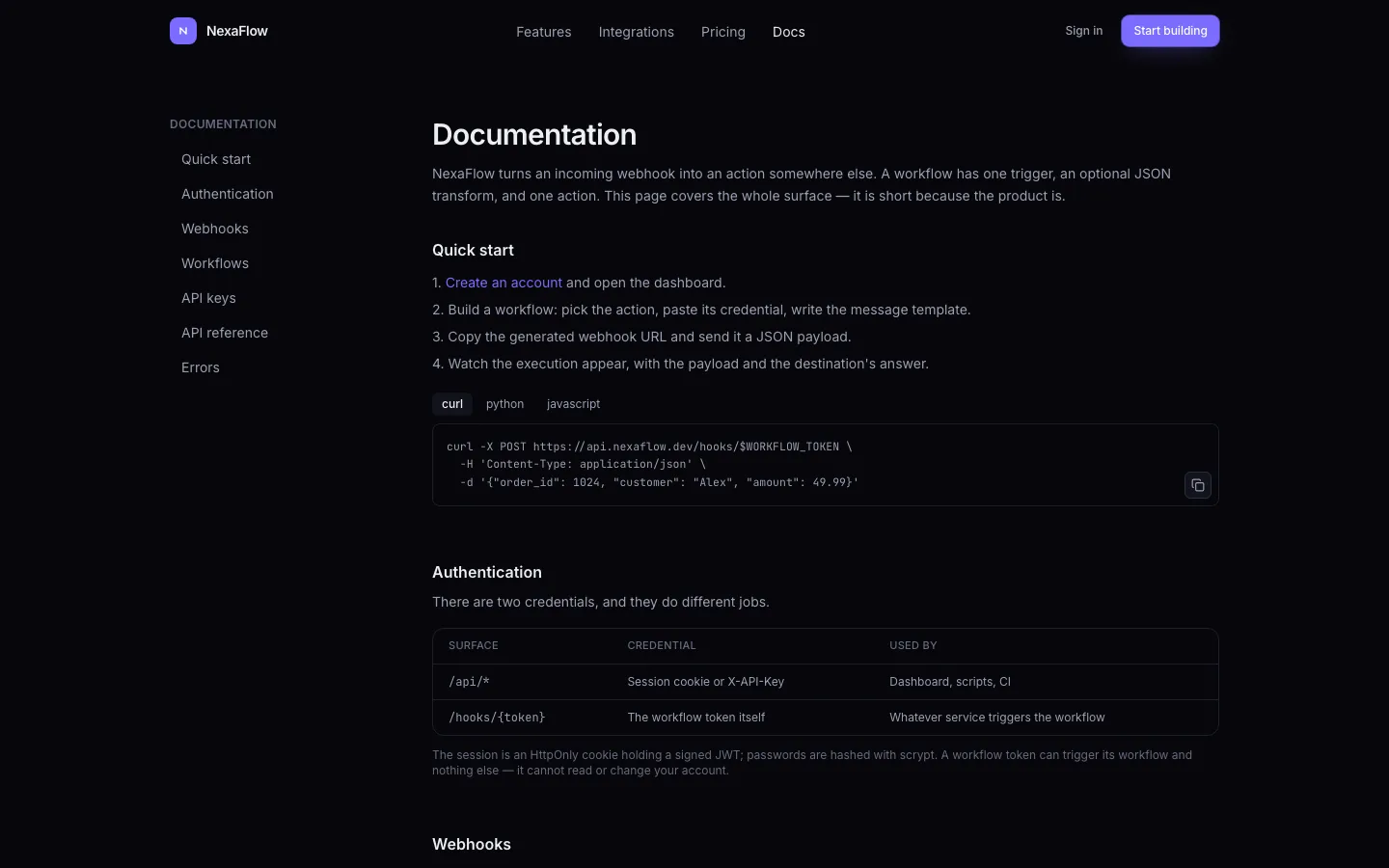

API walkthrough in the dashboard
Captured from the app running locally with its seeded demo data. Select an image to open it full size.
Architecture
How the pieces fit
- External service → POST /hooks/{token}
- Dashboard → Management API
- POST /hooks/{token} → Workflow engine
- Management API → Workflow engine
- Workflow engine → Transform
- Transform → Discord
- Transform → Telegram
- Transform → HTTP API
- Transform → Executions
- Core service
- External system
- Storage / entry point
Core features
What's in it
Webhook triggers
POST /hooks/{token} with a size limit, JSON parsing, token lookup and optional HMAC verification.
JSON transforms
Reshape payloads with {{dotted.paths}}; templates substitute values and never evaluate anything.
Three real actions
Discord webhook, Telegram Bot API and any-method HTTP calls, behind one adapter interface.
Background execution
Up to three attempts with exponential backoff, only for failures a retry can fix (timeouts, 429, 5xx).
Execution history
Payload at every stage, attempts, duration and error per run, filterable by workflow and status.
API keys
nxf_live_… keys stored as SHA-256 digests, shown once and revocable, for scripts and CI.
Technical decisions
Interesting problems, and how they're solved
- 01
A template language that can't run code
Payloads are untrusted input, so the transform engine only resolves paths; missing paths are reported in the log instead of rendering “None”.
- 02
The execution row exists before the first attempt
The caller is never held open while a third party is contacted, and nothing is lost if the process dies mid-run.
- 03
Two credentials, two jobs
A workflow token can trigger its own workflow and nothing else; an API key can manage the account but is never used by the browser.
def resolve_path(payload: Any, path: str) -> Any:
"""Walk ``a.b.0.c`` through dicts and lists; return None when it breaks."""
current = payload
for part in path.replace("[", ".").replace("]", "").split("."):
if part == "":
continue
if isinstance(current, dict):
if part not in current:
return None
current = current[part]
elif isinstance(current, list):
try:
current = current[int(part)]
except (ValueError, IndexError):
return None
else:
return None
return currentStack & skills
Built with
Technology
- Python
- FastAPI
- SQLAlchemy
- httpx
- cryptography
- Next.js
- TypeScript
- Tailwind CSS
- Motion
What this project demonstrates
- Workflow automation
- Webhooks & HMAC
- Background jobs & retries
- Discord & Telegram APIs
- Full-stack product
Repository & demo
Run it yourself
Seeded demo account: demo@nexaflow.dev / nexaflow-demo-1234.
No public live demo is hosted. Everything below runs locally with Python 3.12+ and Node 20+.
$ git clone https://github.com/Moeijiro/nexaflow.git
$ cd nexaflow
$ make install
$ make seed
$ make api
$ make web
